Steel Wire Rope - a rope consisting of mostly steel wire

Strand - wires twisted together in a geometrical fashion

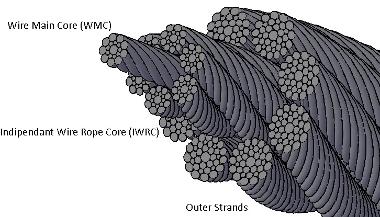

Independent wire rope core- the centre of a steel wire rope consisting of a steel wire rope.

Wire main core - the centre of a steel wire rope consisting of a steel wire strand

Fibre core - the centre of a steel wire rope manufactures from a synthetic of natural fibre

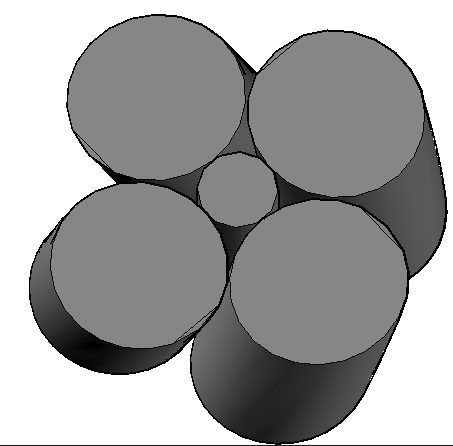

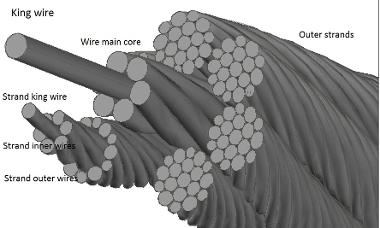

King wire - the central wire of a strand

Outer wire - the wires on the outside of a strand

Inner wire - a wire between the king wire and the outer wires often referred to as d1, d2 etc

LAY TYPES

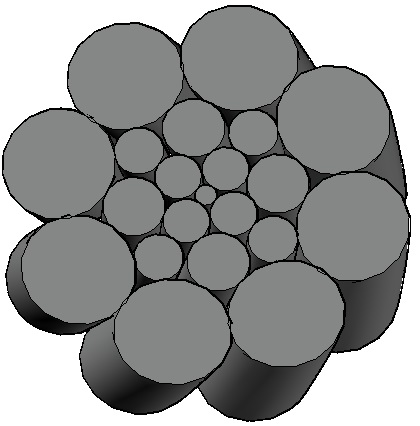

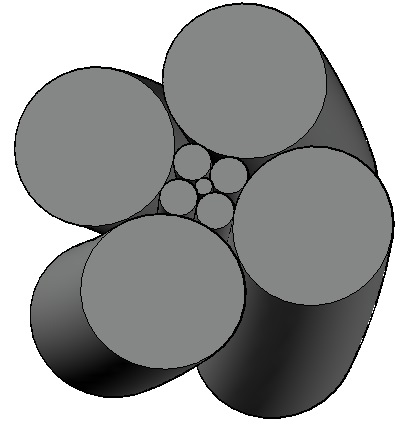

UNEQUAL LAY

A strand construction in which successive layers of wires are added in an additional stranding process with a different lay length, usually in a form of 3N/2N/N/1. However, as each successive layer is a separate process any number of wires can be add to a layer. Layers can be in the same lay direction or opposite hand of lay.

PARALLEL LAY

This is a method in which all the wires are layed into a strand in one operation. All the wires have the same lay length. This is accomplished by laying all the wires in a single opperation.




HAND OF LAY

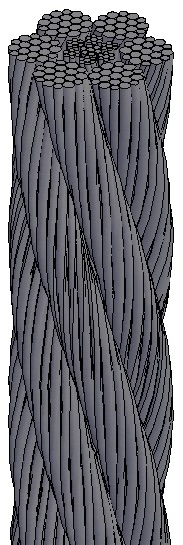

Left hand ordinary

Left hand lang

Right hand lang

Right hand ordinary
